Home 2026 Ford F-250 Super Duty Platinum 6.7L V8 - Diesel Vacuum System

My Garage

2026 Ford F-250 Super Duty

Platinum 6.7L V8 - Diesel

Change Vehicle

Categories

Emission Control
Emission Control
Browse Categories

Vacuum System for 2026 Ford F-250 Super Duty

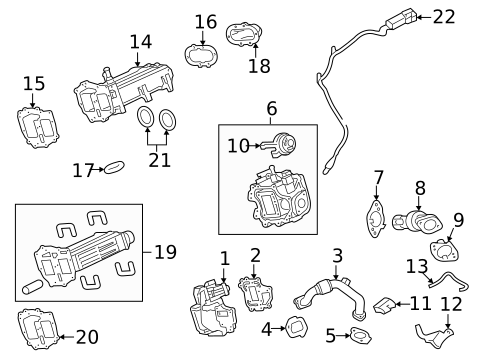

Diagram 1 1. Motorcraftâ„¢ Egr Valve Diagram 2 2. Vacuum Hose
Vacuum System for 2026 Ford F-250 Super Duty #0
1
11
12
13
15
16
17
18
19
2
20
21
22
3
4
5
6
7
8
No.
Part # / Description / Price
Price
1
CX2649 - Emission System: Motorcraftâ„¢ Egr Valve for Ford Image
Motorcraft Exhaust Gas Re-Circulation (Egr) Valve
CX-2649
Ford Ford
Description: F250, f350, f450, f550. 6.7l. Pickup. 6.7L egr valve & cooler. F250 super duty. 6.7l. F350 super duty. 6.7l. F450 super duty. 6.7l.
MSRP $436.36
$262.80
MSRP $436.36
$262.80
1
HC3Z9D475C - Emission System: Egr Valve for Ford Image
2017-2020 Ford Egr Valve
HC3Z-9D475-C
Ford Ford
Description: F250, f350, f450, f550. 6.7l. Pickup. F250 super duty. 6.7l. F350 super duty. 6.7l. F450 super duty. 6.7l. 6.7L egr valve & cooler.
MSRP $436.36
$262.80
MSRP $436.36
$262.80
2
BC3Z9D476B - Emission System: Egr Valve Gasket for Ford Image
2011-2024 Ford - Valve Gasket
BC3Z-9D476-B
Ford Ford
Description: For EGR Valve. EGR Valve to EGR Valve Adapter. F250, f350, f450, f550. 6.7l diesel. F250 super duty. 6.7l. F350 super duty. 6.7l. F450 super duty. 6.7l. 6.7L egr valve & cooler. F550 super duty. 6.7l.
MSRP $50.73
$31.25
MSRP $50.73
$31.25
2
CG778 - Emission System: Motorcraftâ„¢ Egr Valve Gasket for Ford Image
Motorcraft Exhaust Gas Re-Circulation (Egr) Valve Gasket
CG-778
Ford Ford
Description: For EGR Valve. EGR Valve to EGR Valve Adapter. F250, f350, f450, f550. 6.7l diesel. F250 super duty. 6.7l. F350 super duty. 6.7l. F450 super duty. 6.7l. 6.7L egr valve & cooler. F550 super duty. 6.7l.
MSRP $50.73
$31.25
MSRP $50.73
$31.25
3
LC3Z9E469A - Emission System: Egr Tube for Ford Image
2020 Ford Egr Tube
LC3Z-9E469-A
Ford Ford
Description: EGR Valve to Exhaust Manifold. F250, f350, f450, f550. 6.7l diesel. F250 super duty. 6.7l. F350 super duty. 6.7l. F450 super duty. 6.7l. 6.7L egr valve & cooler. EGR tube. F550 super duty. 6.7l.
MSRP $148.68
$98.58
MSRP $148.68
$98.58
4
HC3Z9D476A - Emission System: Egr Tube Gasket for Ford Image
2011-2020 Ford Seal Kit Gasket
HC3Z-9D476-A
Ford Ford
Description: For EGR Tube. Egr valve to egr tube. 6.7L, egr valve & cooler. Egr valve & cooler, upper.
MSRP $14.75
$10.14
MSRP $14.75
$10.14
4
CG818 - Emission System: Motorcraftâ„¢ Egr Tube Gasket for Ford Image
Motorcraft Exhaust Gas Re-Circulation (Egr) Tube Gasket
CG-818
Ford Ford
Description: For EGR Tube. Egr valve to egr tube. 6.7L, egr valve & cooler. Egr valve & cooler, upper.
MSRP $14.75
$10.14
MSRP $14.75
$10.14
5
CG825 - Emission System: Motorcraftâ„¢ Egr Tube Gasket for Ford Image
Motorcraft Exhaust Gas Re-Circulation (Egr) Tube Gasket
CG-825
Ford Ford
Description: For EGR Valve. EGR Tube To Exhaust Manifold. Egr valve & cooler. lower.
MSRP $21.09
$13.34
MSRP $21.09
$13.34
5
LC3Z9E464A - Emission System: Egr Tube Gasket for Ford Image
2020 Ford F-250 Super Duty - Egr Tube Gasket
LC3Z-9E464-A
Ford Ford
Description: For EGR Valve. EGR Tube To Exhaust Manifold. Egr valve & cooler. lower.
MSRP $21.09
$13.34
MSRP $21.09
$13.34
6
HC3Z9U433B - Emission System: By-Pass Valve for Ford Image
2017-2020 Ford Vacuum Valve
HC3Z-9U433-B
Ford Ford
Description: Egr valve & cooler.
MSRP $300.00
$197.10
MSRP $300.00
$197.10
7
BC3Z9E464F - Emission System: By-Pass Valve Gasket for Ford Image
2011-2020 Ford By-Pass Valve Gasket
BC3Z-9E464-F
Ford Ford
Description: Egr valve & cooler. For EGR Tube. EGR Valve Adapter to EGR Tube. EGR Tube to Intake Manifold.
MSRP $11.64
$8.00
MSRP $11.64
$8.00
7
CG832 - Emission System: Motorcraftâ„¢ By-Pass Valve Gasket for Ford Image
Motorcraftâ„¢ Exhaust Gas Re-Circulation (Egr) Tube Gasket
CG-832
Ford Ford
Description: Egr valve & cooler. For EGR Tube. EGR Valve Adapter to EGR Tube. EGR Tube to Intake Manifold.
MSRP $11.64
$8.00
MSRP $11.64
$8.00
8
BC3Z9E470B - Emission System: Outlet Tube for Ford Image
Exhaust Gas Re-Circulation (Egr) Tube
BC3Z-9E470-B
Ford Ford
Description: EGR Valve To Intake Manifold. 6.7L egr valve & cooler. Outlet tube.
MSRP $135.30
$89.70
MSRP $135.30
$89.70
11
JC3Z9F454A - Emission System: Control Valve for Ford Image
2020 Ford Control Valve
JC3Z-9F454-A
Ford Ford
Description: F250 super duty. 6.7l. F350 super duty. 6.7l. F450 super duty. 6.7l. 6.7L egr valve & cooler. F550 super duty. 6.7l.
MSRP $67.00
$45.02
MSRP $67.00
$45.02
12
BC3Z9L456D - Emission System: Control Valve Bracket for Ford Image
2017-2020 Ford Control Valve Bracket
BC3Z-9L456-D
Ford Ford
Description: 6.7L egr valve & cooler.
MSRP $20.17
$13.92
MSRP $20.17
$13.92
13
HC3Z9D430B - Emission System: Control Valve Connector for Ford Image
2017-2020 Ford Control Valve Connector
HC3Z-9D430-B
Ford Ford
Description: Egr valve & cooler.
MSRP $20.00
$12.50
MSRP $20.00
$12.50
13
HC3Z9D430A - Emission Control: Vacuum Hose for Ford Image
2017-2020 Ford Vacuum Tube
HC3Z-9D430-A
Ford Ford
Description: 6.7L egr valve & cooler. Vacuum tube. 6.7L, vacuum pump & hoses, to egr valve.
MSRP $32.00
$18.40
MSRP $32.00
$18.40
15
CG835 - Emission System: Motorcraftâ„¢ Housing Gasket for Ford Image
Motorcraftâ„¢ Exhaust Gas Re-Circulation (Egr) Cooler Gasket
CG-835
Ford Ford
Description: Egr valve & cooler, front.
MSRP $38.00
$24.04
MSRP $38.00
$24.04
15
DC3Z9D476A - Emission System: Housing Gasket for Ford Image
2017-2024 Ford - Housing Gasket
DC3Z-9D476-A
Ford Ford
Description: Egr valve & cooler, front.
MSRP $38.00
$24.04
MSRP $38.00
$24.04
16
BC3Z9D476C - Emission System: Housing Gasket for Ford Image
2011-2024 Ford - Housing Gasket
BC3Z-9D476-C
Ford Ford
Description: 6.7L, egr valve & cooler. Egr valve & cooler, rear.
MSRP $9.44
$6.75
MSRP $9.44
$6.75
17
BC3Z9E464C - Emission System: Housing Gasket for Ford Image
2011-2024 Ford - Valve Cover Spacer
BC3Z-9E464-C
Ford Ford
Description: For EGR Tube. EGR Tube To Exhaust Manifold. Egr valve & cooler. lower.
MSRP $2.58
$1.85
MSRP $2.58
$1.85
17
CG834 - Emission System: Motorcraftâ„¢ Housing Gasket for Ford Image
Motorcraftâ„¢ Exhaust Gas Re-Circulation (Egr) Valve Gasket
CG-834
Ford Ford
Description: For EGR Tube. EGR Tube To Exhaust Manifold. Egr valve & cooler, lower.
MSRP $2.58
$1.85
MSRP $2.58
$1.85
18
HC3Z9V426B - Emission System: Rear Cover for Ford Image
2017-2020 Ford Rear Cover
HC3Z-9V426-B
Ford Ford
Description: 6.7L egr valve & cooler.
MSRP $65.08
$43.74
MSRP $65.08
$43.74
19
HC3Z9V425B - Emission System: Cooler for Ford Image
2017-2024 Ford - Cooler
HC3Z-9V425-B
Ford Ford
Description: Cooler. F250 super duty. 6.7l. Tube assembly. F350 super duty. 6.7l. F450 super duty. 6.7l. F550 super duty. 6.7l.
MSRP $443.33
$291.27
MSRP $443.33
$291.27
20
DC3Z9E464A - Emission System: Cooler Gasket for Ford Image
2017-2024 Ford - Cooler Gasket
DC3Z-9E464-A
Ford Ford
Description: Egr valve & cooler.
MSRP $35.20
$22.26
MSRP $35.20
$22.26
20
CG833 - Emission System: Motorcraftâ„¢ Cooler Gasket for Ford Image
Motorcraftâ„¢ Exhaust Gas Re-Circulation (Egr) Cooler Gasket
CG-833
Ford Ford
Description: Egr valve & cooler.
MSRP $35.20
$22.26
MSRP $35.20
$22.26
21
HC3Z8527A - Emission System: Cooler O-Ring for Ford Image
2017-2020 Ford Housing O-Ring
HC3Z-8527-A
Ford Ford
Description: 6.7L, egr valve & cooler.
MSRP $16.23
$12.18
MSRP $16.23
$12.18
22
EGTS2 - Emission System: Motorcraftâ„¢ Egr Temp Sensor for Ford Image
Motorcraft Exhaust Gas Temperature (Egt) Sensor
EGTS-2
Ford Ford
MSRP $241.82
$146.03
MSRP $241.82
$146.03
22
BC3Z12B591C - Emission System: Egr Temp Sensor for Ford Image
2011-2024 Ford - Sensor
BC3Z-12B591-C
Ford Ford
MSRP $241.82
$146.03
MSRP $241.82
$146.03
